MALMEDIE

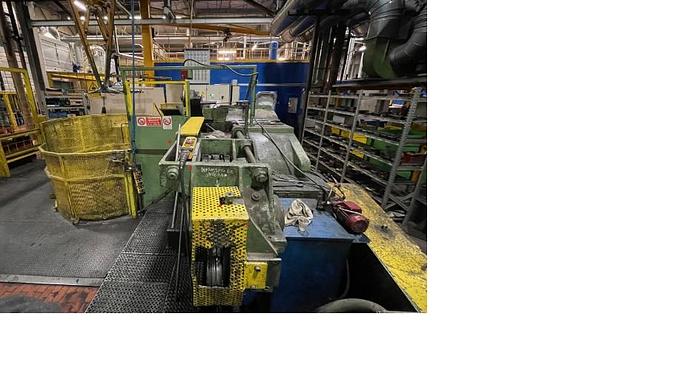

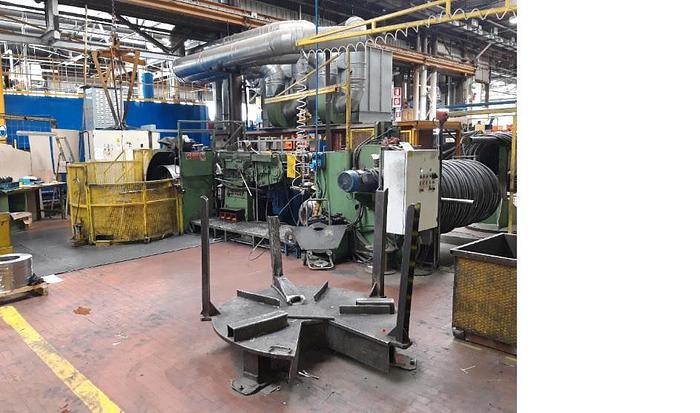

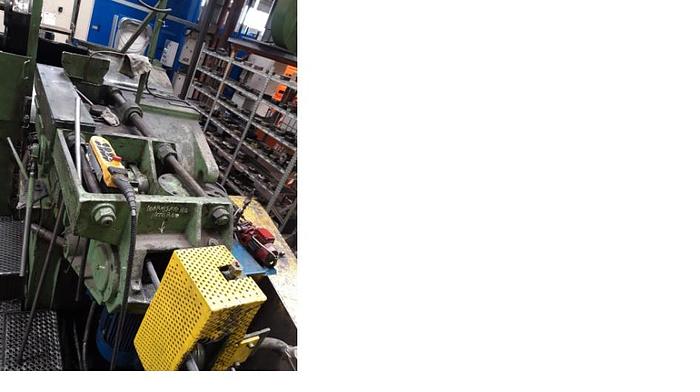

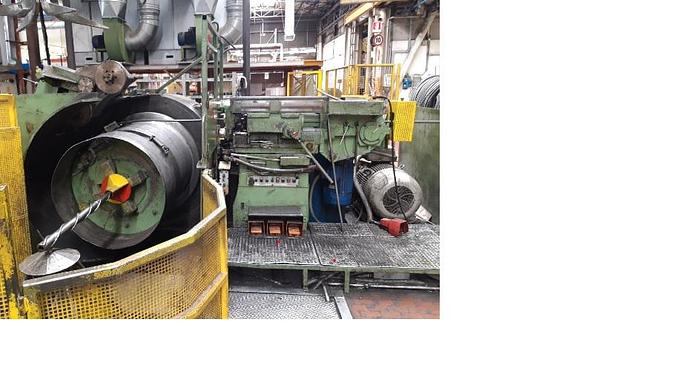

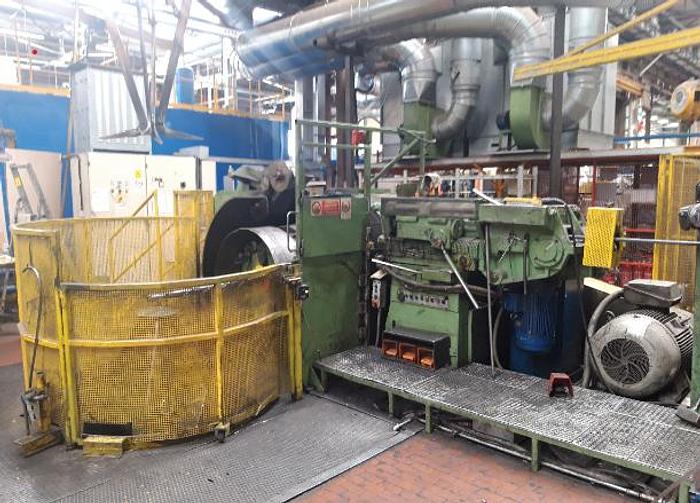

TRAFILA MALMEDIE

• Velocità di trafilatura regolabile con inverter

• Minimum worked diameter 15 mm

• Maximum worked diameter 25 mm

• External dimension coils 1.250-1.300 mm

• Internal dimension coils 800-900 mm

• Length 700-1.300 mm

• Weight 1.500 Kgs

• Wire surface treatment bonderized with soaped

• Tensile resistance approx 500 N/ mm2

The drawing machine normally work the raw material over mentioned with the

follow specification:

• Number of drawing passage 1

• Drawing die sizes 120x45 mm

• Lubricant now used oil

• Max area reduction 6 to 8 %

• Drawing speed adjustable with inverter
